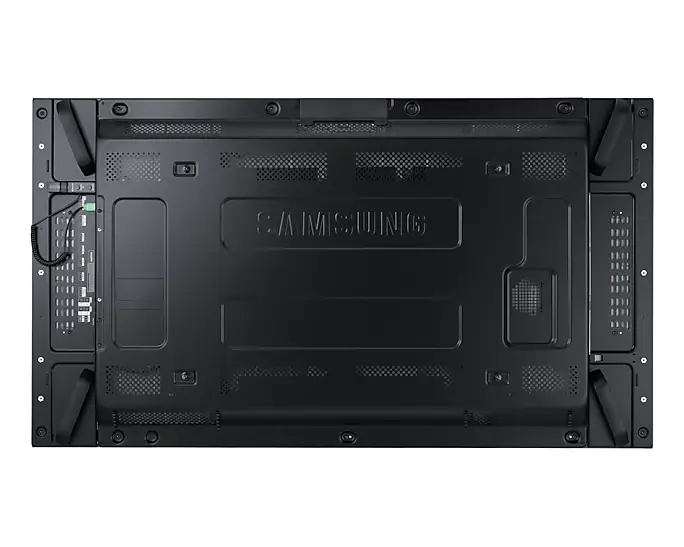

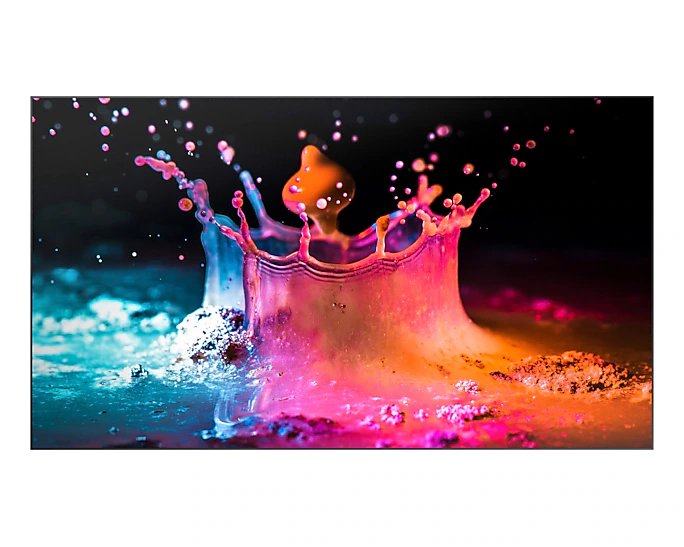

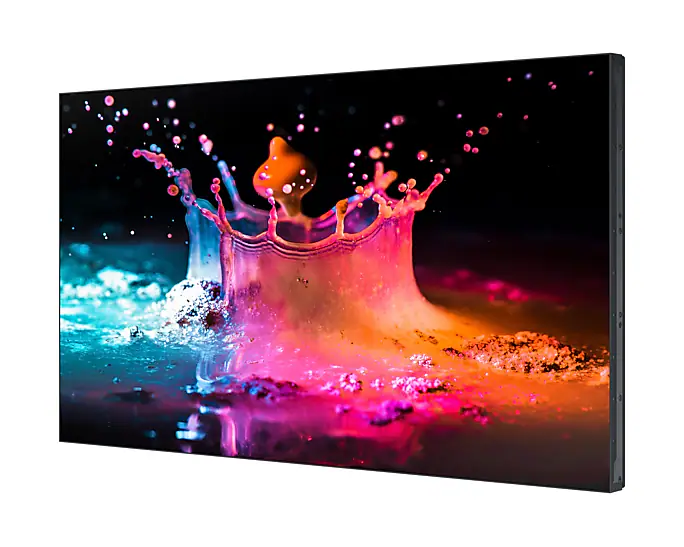

Samsung 55″ Video Wall UDE-H Series LH55UDEHLBB/NG

39,999.0044,999.00 (-11%)

In stock

  • Powerful video wall solution with advanced color calibration and seamless bezel design
  • Multifaceted UHD video wall solution based on daisy chain through the use of Display Port (DP) 1.2
  • Brightness uniformity and color accuracy with Samsung Color Expert Technology and factory calibration

Display
Diagonal Size
55″

Screen Size
139.7 cm (55)

Panel Type
D-LED DID

Resolution
1920 x 1080

Pixel Pitch (HxV)
0.63 mm x 0.63 mm

Active Display Size (HxV)
1,209.6 x 680.4 mm

Contrast Ratio
4,000:1

Viewing Angle (H/V)
178/178

Response Time
8 ms

Display Color
8 bit – 16.7 M

Color Gamut
72%

H-Scanning Frequency
30 kHz ~ 81 kHz

Maximum Pixel Frequency
148.5 MHz

V-Scanning Frequency
48 Hz ~ 75 Hz

Brightness
500 cd/m²

Contrast Ratio (Dynamic)
10,000:1
Connectivity
RGB In
Analog D-SUB, DVI-D, Display Port 1.2

RGB Out
DP1.2 (Loop-out)

Audio In
Stereo Mini Jack

Audio Out
Stereo Mini Jack

Video In
HDMI1, HDMI2
Power
Power Supply
AC 100 – 240 V ~ (+/- 10%), 50/60 Hz

Power Consumption (Off Mode)
Less than 0.5 watts

Power Consumption (On Mode)
Max: 198 watts, Typ: 136 watts, BTU (Max): 675 watts

Consumption (Sleep Mode)
Less than 0.5 watts
Dimension
Set Dimension (WxHxD)
1,213.5 x 684.3 x 96.6 mm

Package Dimension (WxHxD)
1,355 x 809 x 320 mm
Weight
Set Weight
21.5 Kg

Package Weight
29.0 Kg
Operation Conditions
Temperature
0 ~ 40 °C

Humidity
10 ~ 80%
Mechanical Specification
VESA Mount
600 x 400 mm

Bezel Width
2.3 mm (U/L), 1.2 mm (R/B)

Media Player Option Type
SBB-C/DA/DI (Slide In)
General Feature
Special
ACM Support (Advanced Colour Management), Auto Source Switching & Recovery, Haze 44%, Temperature Sensor, RS232C/RJ45 MDC, Plug and Play (DDC2B), Video Wall (15 x 15 (OSD)), Video Wall Daisy Chain (10 x 10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain (Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery (80 hours Clock Keeping)
Optional Feature
Mount
WMN-55VD

Specialty
MID-UD55DS
Accessory
Included
Quick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries
