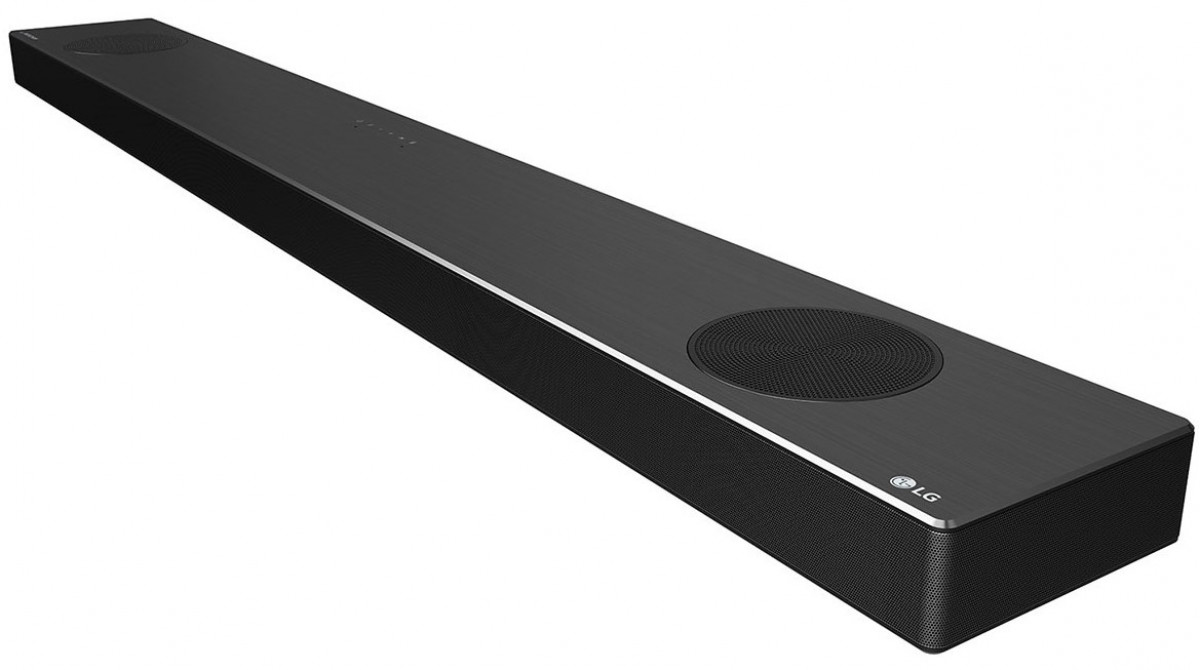

LG SN9Y Soundbar 7.1.4Ch, 520W, Dolby Atmos, Meridian, Hi-res Audio
Roll over image to zoom in
₵3,899.00₵4,000.00 (-3%)
LG SN9Y Soundbar 7.1.4Ch, 520W, Dolby Atmos, Meridian, Hi-res Audio (24bit / 192kHz), Optical Bluetooth, Room Calibration 2020 model
- with MERIDIAN
- Dolby Atmos
- DTS:X
- 5.1.2 ch
- High Resolution Audio
- eARC
eARC
Fully Enjoy Entertainment the Best Way Possible
HDMI eARC (Enhanced Audio Return Channel) allows lossless transmission of uncompressed 5.1 ch and 7.1 ch audio, and even HBR (High Bit Rate) audio such as Dolby Atmos® and DTS: X® on compatible TVs.
Connect More Conveniently
Add Wi-Fi and Bluetooth® connectivity to your audio setup, or conveniently connect and play using optical or HDMI cables.
Design, features and specifications subject to change without notice. Screen images simulated and/or dramatized. Some features in videos may not be available on all models. Please refer to the TECHNICAL SPECIFICATIONS tab for a complete list of features by model.
Details shown on product images may vary by region, country or model.
Details shown on product images may vary by region, country or model.
MODEL INFORMATION
-
- Brand Information
- Sound Bar AI ThinQ
- Model Name
- SN9Y
-
- Subwoofer Model Name
- SPN8-W
- System (Main Chip)
- MT8531
-
- Mainset/Subwoofer Color
- Dark Steel Silver
SIZE(W X H X D, MM)
-
- Main (w/ Foot )
- 1220 x 57 x 145
- Matching TV size (20 New)
- 55 inch ↑
-
- Subwoofer
- 221.0 x 390.0 x 312.8
MATERIAL
-
- Main – Front/Top/Bottom
- Metal Grille/Mold/Mold
- Subwoofer – Front/Body
- Jersey/Wood
WEIGHT(KG)
-
- Main
- 6.3Kg
- Subwoofer
- 7.8Kg
-
- Gross Weight
- 18.3Kg
CARTON BOX
-
- Size (W x H x D) mm
- 1286 x 284 x 467
- Type
- TipOn
-
- Color
- White(1)+Yellow
CONTAINER Q
-
- 20ft
- 136
- 40ft
- 292
-
- 40ft (HC)
- 365
NUMBER OF CHANNELS
-
- Number of channels
- 5.1.2ch
OUTPUT POWER(THD 10%)
-
- Total
- 520W
- Front
- 40W x 2
-
- Center
- 40W
- Surround (Side)
- 40W x 2
-
- Top
- 50W x 2
- Subwoofer
- 220W (Wireless)
SPEAKER UNIT_FRONT(L/R)
-
- SPL
- 82dB
- System
- Closed
-
- Tweeter Unit
- 20mm Silk Dome
- Woofer Unit
- 40 x 100 mm
-
- Impedance
- 4ohm
SPEAKER UNIT_CENTER
-
- SPL
- 82dB
- System
- Closed
-
- Tweeter Unit
- 20mm Silk Dome
- Woofer Unit
- 40 x 100 mm
-
- Impedance
- 4ohm
SPEAKER UNIT_SURROUND(SIDE)(L/R)
-
- SPL
- 82dB
- System
- Closed
-
- Woofer Unit
- 40 x 100 mm
- Impedance
- 4ohm
SPEAKER UNIT_TOP(L/R)
-
- SPL
- 83dB
- System
- Closed
-
- Woofer Unit
- 2.5 inch
- Impedance
- 4ohm
SPEAKER UNIT_SUBWOOFER
-
- SPL
- 85dB
- System
- Bass Reflex
-
- Woofer Unit
- 7 inch
- Impedance
- 3ohm
NO. OF SPEAKER UNIT
-
- Number of speakers
- 11EA
CONNECTIVITY_GENERAL
-
- Optical
- Yes (1)
- HDMI 2.1 (HDCP 2.3) – In / Out
- Yes (1)/Yes (1)
-
- HDR10
- Yes
- USB
- Yes
CONNECTIVITY_WIRELESS
-
- Bluetooth Version
- 5.0
- Bluetooth Codec – SBC
- Yes
-
- Wi-Fi (2.4G / 5G)
- Yes
- Wireless Rear ready
- Yes (1:1)
DISPLAY INFORMATION
-
- Display Type
- LCD (5 char.)
HI-RESOLUTION AUDIO
-
- Sampling – “24bit/192kHz” / “24bit/96kHz”
- Yes/Yes
- Upbit/upsampling – “24bit/192kHz”
- Yes
SOUND EFFECT
-
- AI Sound Pro
- Yes
- Standard
- Yes (w/ Meridian)
-
- Music
- Yes
- Bass Blast/Bass Blast +
- Yes
-
- Movie (Dolby Surround)
- Yes
- Dolby ATMOS
- Yes
SOUND CONTROL
-
- User EQ – RCU / App
- Yes/Yes
- Night Time On/Off – App
- Yes
-
- Dynamic Rage On/Off – App
- Yes
- Auto Volume Leveler On/Off – App
- Yes
-
- AI Room Calibration (2 MIC In) – App
- Yes
GOOGLE SUPPORTED
-
- Works with the Google Assistant (Controllee)
- Yes
- Chromecast
- Yes
-
- Google Multi Zone (One Source → Multi Speaker)
- Yes
CONVENIENCE
-
- Remote App – iOS/Adroid OS
- Yes/Yes
- Smart Phone File Playback
- Yes
-
- EZ setup (BLE)
- Yes
- NSU
- Yes
-
- Control with your TV Remote (Vol+/-, Mute)
- Yes
- Sound Sync – Optical
- Yes
-
- Auto Power On/Off – Optical
- Yes
- A/V Sunc (0~300ms) – APP
- Yes
-
- HDMI SIMPLINK
- Yes
- HDMI Audio Return Channel (ARC)
- Yes
-
- HDMI Audio Return Channel (e-ARC)
- Yes
- Woofer Level (-15 ~ 6dB, 1dB/Step)
- Yes
-
- Channel Level (-6 ~ 6dB, 1dB/Step) – Top/Center/Surround/Rear
- Yes/Yes/Yes/Yes
- Mute
- Yes
-
- Auto Dimmer
- Yes
- Sleep Timer – App
- Yes
-
- USB Host
- Yes
- Built-in Music
- Yes (2)
-
- Auto Detect (Bluetooth)
- Yes
AUDIO FORMAT(BITSTREAM)
-
- LPCM
- Yes
- Dolby Atmos
- Yes
-
- Dolby TrueHD
- Yes
- Dolby Digital Plus
- Yes
-
- Dolby Digital
- Yes
- DTS:X
- Yes
-
- DTS-HD Master Audio
- Yes
- DTS-HD High Resolution
- Yes
-
- DTS Digital Surround
- Yes
- AAC / AAC+
- Yes
FILE FORMAT
-
- FLAC – C4A/USB
- Yes/Yes
- OGG – C4A/USB
- Yes/Yes
-
- WAV – C4A/USB
- Yes/Yes
- MP3 – C4A/USB
- Yes/Yes
-
- AAC – C4A/USB
- Yes/Yes
POWER_MAIN
-
- SMPS
- 100~240V, 50/60Hz
- Power Off Consumption
- 0.5W ↓
-
- Power Consumption
- 70W
POWER_SUBWOOFER
-
- Type (SMPS)
- 100~240V, 50/60Hz
- Power Off Consumption
- 0.5W ↓
-
- Power Consumption
- 38W
- Wireless Frequency
- 5GHz
ACCESSORY_MANUAL
-
- Web Manual (File)
- Yes (Full)
- Built-in Manual (Book) (Simple or Full)
- Yes (Simple)
-
- Wall Mount Guide
- Yes
- Open Source – Yes (Full or Simple)
- Yes (Full)
-
- Warranty Card
- Yes
ACCESSORY_REMOTE CONTROL
-
- Model Name
- MA7 (19 Modify)
- Battery(Size)
- AAA x 2
-
- Battery Built-in
- Yes
ACCESSORY_OTHERS
-
- Optical Cable
- Yes
- Wall Mount Bracket
- Yes
